R3.60 Kingspan Kooltherm K12 Framing Board Residential Batts
1200 x 403 x 80 mm (6 per pack, 2.90 m²)
$166.25
Sale price
$166.25
Regular price
$175.00
Skip to product information
R3.60 Kingspan Kooltherm K12 Framing Board Residential Batts
$166.25
Sale price
$166.25
Regular price
$175.00
GST inclusive
This size is on sale. Sale items are not included in the Opening Offer order discount. Offer details
How many do you need?
Measure the wall, ceiling or roof area and take about 10% off for studs, joists and purlins.
You need
Which covers
Total
Dispatch: Most orders are processed the same day. Metro delivery: Usually 1–3 business days. We do our best to get most items out on the next business day.
Delivery to VIC and NSW: $55 in metro Melbourne and metro Sydney, $99 in the outer ring around both cities, $149 anywhere else in the two states · Local pickup from Epping, VIC by arrangement · Shipping details

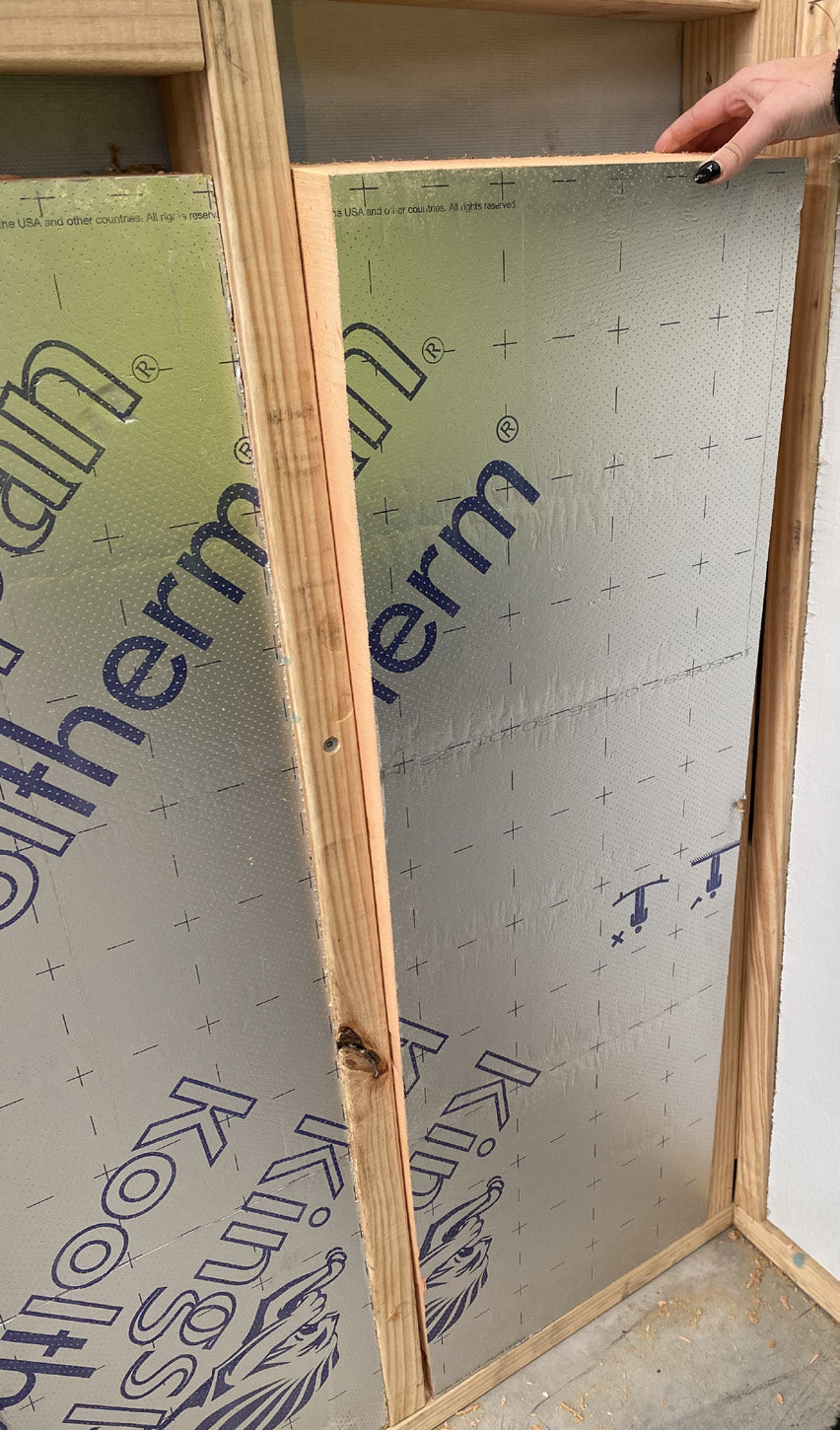

Kooltherm K12 Framing Board in residential batt sizes is Kingspan's 80 mm, R3.60 rigid phenolic insulation, sized to fit between the studs of a timber or steel framed wall. The fibre-free core is faced on both sides with composite foil. Made in Australia.
Choosing the width
Kingspan make 403, 413, 553 and 563 mm widths, all 1200 mm long and 80 mm thick. We sell 403 and 563 mm. Measure the gap between studs first, because Kingspan say to pick the width that best fits the stud frame. Full 2400 x 1200 mm sheets are on the Kooltherm K12 Framing Board page.
What R3.60 means
R3.60 is Kingspan's declared R-value for the 80 mm product at 23 °C: the batt on its own, not a wall total. The data sheet lists it for framed walls in NCC Class 1 houses. For Type A and B walls in multi-storey Class 2 buildings, talk to Kingspan Technical Services first.
Packs and coverage
Six batts to a pack. A 403 mm pack covers 2.90 m² and a 563 mm pack 4.05 m², counting batt face area only. Both widths are stocked.
On site

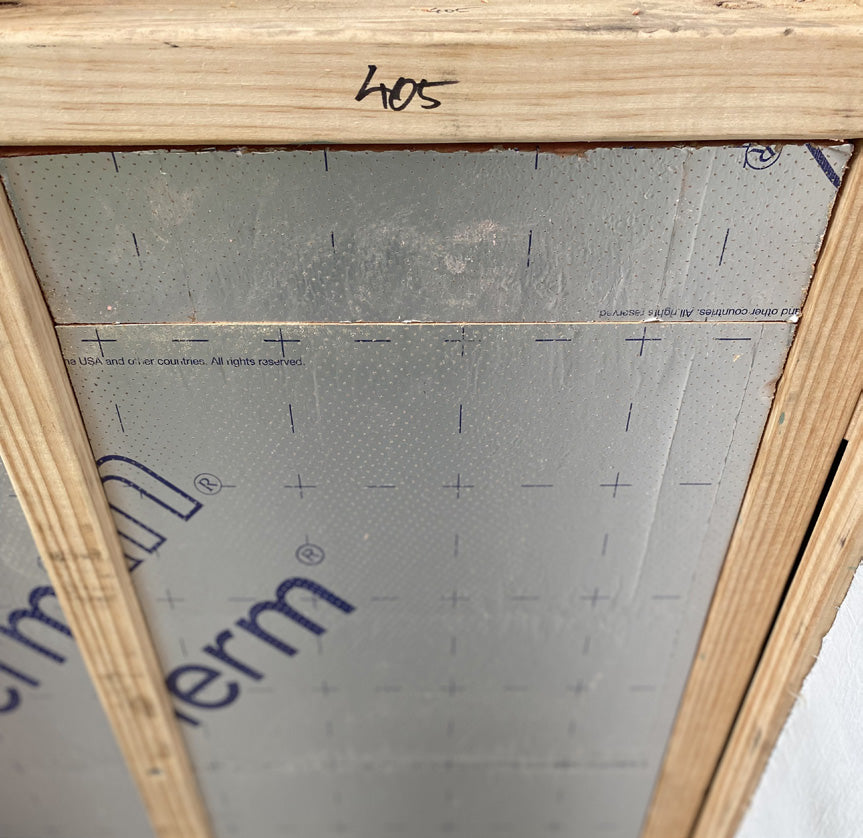

Fill a gap under the noggin with an offcut and gaps on a vertical edge with HB FulaFoam Pro. Glasswool goes around services. Cut with a fine tooth saw. The foil conducts electricity, so keep it off bare cables. Kingspan require installation to AS 3999:2015 and AS 3000:2018. Wet boards should not be used, so keep the packs dry. Full figures are in the table below.
Technical data
Kingspan technical data sheet (PDF)Sizes stocked
| Batt size | Thickness | Declared R-value at 23 °C | Batts per pack | m² per pack | Product code | Supply |
|---|---|---|---|---|---|---|
| 1200 x 403 mm | 80 mm | R3.60 | 6 | 2.90 m² | 100000078034 | Stocked |
| 1200 x 563 mm | 80 mm | R3.60 | 6 | 4.05 m² | 100000078037 | Stocked |
Sizes and packs
| Residential widths Kingspan make | 403, 413, 553 and 563 mm, each 1200 mm long |
|---|---|
| Thickness | 80 mm in every residential width |
| Widths we sell | 403 and 563 mm |
| Batts per pack | 6 (Kingspan pack quantity) |
| Pack coverage | Face area of the six batts, no allowance for studs |
| Packaging | Labelled packs, shrink-wrapped in polythene |
Kingspan say to choose the width that best fits the stud frame, so measure the clear gap between studs.
Thermal
| Declared R-value, 80 mm | R3.60 at 23 °C |
|---|---|
| Declared thermal conductivity, insulant 45 mm and thicker | 0.022 W/m·K at 23 °C (AS/NZS 4859.1:2018 / ASTM C518-2017) |
| Emittance, foil face | E0.06 (ASTM C1371:2015) |
The foil faces improve the thermal resistance of an unventilated cavity next to the batt.
Fire
| Early fire hazard (AS 1530.3:1999) | Spread of Flame Index 0, Smoke Development ≤ 3 |
|---|---|
| Building use | Suitable for framed walls in NCC Class 1 houses |
| Type A and B walls in multi-storey NCC Class 2 buildings | Contact Kingspan Insulation Technical Services |
Talk to Kingspan before using it in a Type A or B wall of a multi-storey Class 2 building.
Vapour
| Water vapour transmission (ASTM E96/E96M-2022) | > 35 MN.s/g |
|---|
Kingspan describe the board as resistant to the passage of water vapour.
Material and handling

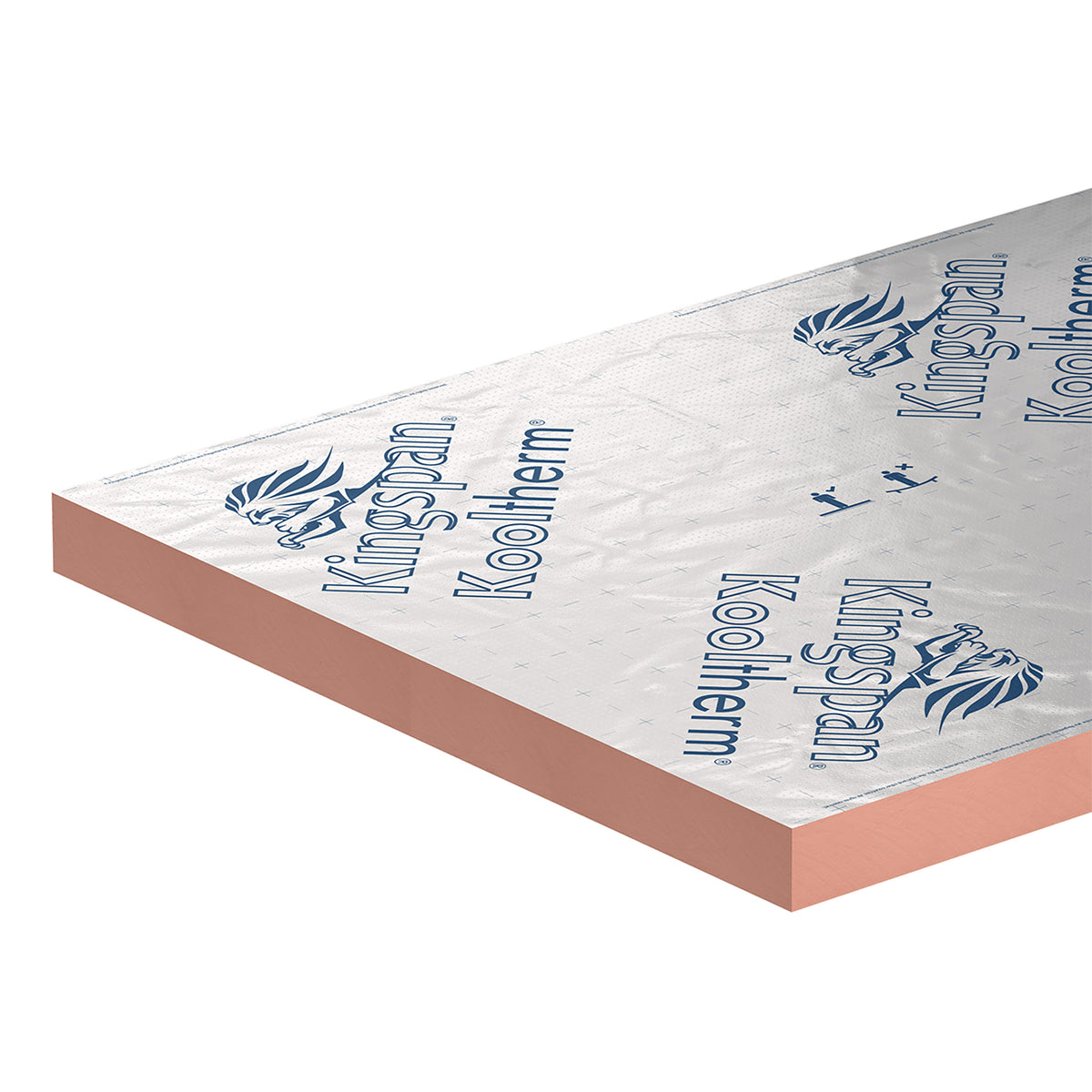

| Construction | Rigid thermoset phenolic, fibre-free core, composite foil on both faces bonded to the core during manufacture |
|---|---|
| Compressive stress (AS 2498.3:1993) | On average exceeds 100 kPa at 10% compression |
| Cutting | Fine toothed saw, or score with a sharp knife, snap over a straight edge and cut the facing on the other side |
| Storage | Ideally inside a building. Outdoors, stack clear of the ground under an opaque polythene sheet or weatherproof tarpaulin. |
| Wet or damaged boards | Do not use boards that have got wet, are damaged or have been in contact with harsh solvents or acids |
| Solvents | The core is not resistant to some solvent-based adhesives, particularly those containing methyl ethyl ketone |
| Electrical | Foil facings conduct electricity |
Protect fitted batts from hot sun and rain until the wall is closed in by the external cladding.
Compliance
| Standards | NCC and AS/NZS 4859.1:2018 compliant |
|---|---|
| Installation standards | AS 3999:2015 and AS 3000:2018 |
| Made in | Australia |
| Warranty | 10 years for residential and commercial installations, subject to the terms of the Kingspan Kooltherm warranty |
Fitting notes
Choose the Kingspan width that best fits the stud frame and insert a full size batt into each stud bay. Where a gap is left between the full batt and the noggin above, fill it with an offcut. Fill any gap on a vertical edge with HB FulaFoam Pro, and use glasswool around services and small voids. Cut with a fine toothed saw, or score with a sharp knife, snap over a straight edge and cut the facing on the other side, trimming accurately so the joints butt closely. Kingspan's tool list is a fine tooth hand saw, a square edge to cut against, and one can of foam per home with a foam gun and solvent. The foil facings conduct electricity, so keep them away from un-insulated cables and fittings, and install to AS 3999:2015 and AS 3000:2018. The foil also reflects UV, so wear UV protective glasses when fitting in bright sun. Protect the batts from hot sun and rain until the wall is enclosed by the external cladding.
Figures are taken from the Kingspan data sheet for Kooltherm K12 Framing Board in residential sizes, KIAU0174 Issue 4, April 2025, with the Kooltherm K12 (Residential Batt) Installation Guide, KIAU0171 First Issue, July 2023. Batts per pack come from Kingspan's 7+ Star Residential Solution flyer. The manufacturer document is linked above. Kingspan can change specifications without notice, so check the current sheet before specifying on a job.
Common questions
Which width do I need for my stud frame?
Kingspan make 403, 413, 553 and 563 mm widths and say to choose the one that best fits the stud frame. We sell 403 and 563 mm. Measure the clear gap between your studs and pick the closer fit.
How much wall does one pack cover?
Each pack holds six batts, 1200 mm long. A 403 mm pack covers 2.90 m² and a 563 mm pack covers 4.05 m². That is the face area of the batts, with no allowance for the studs.
Is R3.60 the R-value of the whole wall?
No. R3.60 is Kingspan's declared R-value for the 80 mm product at 23 °C, the batt on its own. The total for the wall is a separate figure for the whole build.
How do I fill the gaps around the batts?
Kingspan's method is an offcut of K12 for the gap between a full batt and the noggin above, HB FulaFoam Pro for gaps on a vertical edge, and glasswool around services and small voids. Their tool list allows one can of foam per home, with a foam gun and solvent.
How do I cut it?
Use a fine toothed saw, or score it with a sharp knife, snap it over a straight edge and cut the facing on the other side. Trim accurately so the joints butt closely.
Can it go in an apartment wall?
Kingspan list it as suitable for framed walls in NCC Class 1 houses. For Type A and B walls in multi-storey Class 2 buildings, contact Kingspan Insulation Technical Services first. Its AS 1530.3:1999 result is Spread of Flame Index 0 and Smoke Development ≤ 3.
Is it safe near electrical wiring?
The foil facings conduct electricity, so keep them away from un-insulated cables and fittings. Kingspan require installation to AS 3999:2015 and AS 3000:2018 (Wiring Rules).
What if the packs get rained on?
Kingspan say boards that have been allowed to get wet should not be used. Store packs inside where you can, or stacked off the ground under an opaque polythene sheet or weatherproof tarpaulin, and keep fitted batts out of sun and rain until the wall is clad.
Cannot see your question? Ask our team and we will get you an answer.
Answers use the Kingspan data sheet for Kooltherm K12 Framing Board in residential sizes, KIAU0174 Issue 4 (April 2025), the Kooltherm K12 (Residential Batt) Installation Guide KIAU0171, and Kingspan's residential flyer for the pack quantity.
