R5.0 Pink Ceiling Batts
R5.0 430 (4m2/pk)
$53.29
Sale price
$53.29
Regular price
$56.10
Skip to product information
R5.0 Pink Ceiling Batts
$53.29
Sale price
$53.29
Regular price
$56.10
GST inclusive
Dispatch: Most orders are processed the same day. Metro delivery: Usually 1–3 business days. We do our best to get most items out on the next business day.
Australia-wide freight · Local pickup from Epping, VIC by arrangement. Ordering from the outback? Get in touch about deliveries to remote locations · Shipping details
R5.0 Pink Ceiling Batts are 220 mm FBS-1 bio-soluble glasswool from Fletcher, Australian made using up to 80% recycled content. This is a high performance ceiling spec, normally driven by a cold climate zone or an energy rating target rather than by the minimum code requirement.
Depth is the constraint
220 mm of batt needs 220 mm of clear space to sit at its rated thickness. Roof spaces are usually generous at the ridge and tight at the eaves, and a batt crushed at the perimeter performs like a thinner one exactly where the ceiling is most exposed. Measure the tight spots before ordering.
Fire and bushfire
Non-combustible to AS/NZS 1530.1, rated BAL Low through to Flame Zone under AS 3959, and it meets NCC 2022 clause C2D10(1) for non-combustibility.
Sizes
Eight batts per pack at 1160 mm long. The 430 mm width covers 3.99 m² and the 580 mm covers 5.38 m². Coverage per pack keeps falling as the R-value climbs, so allow for more packs than an R3.5 job over the same ceiling.
On site

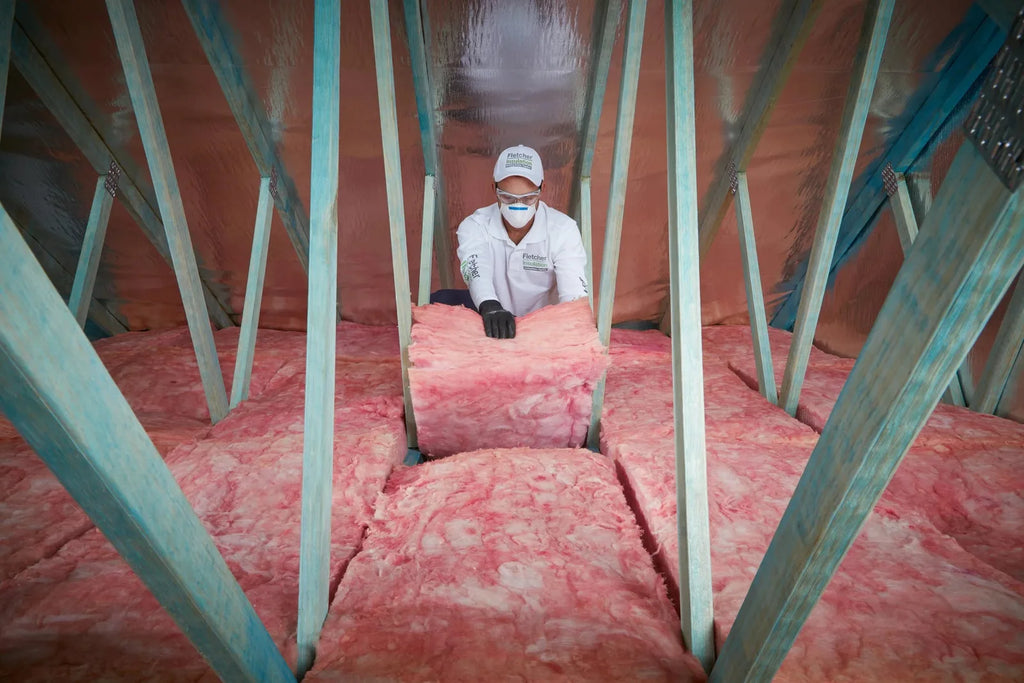

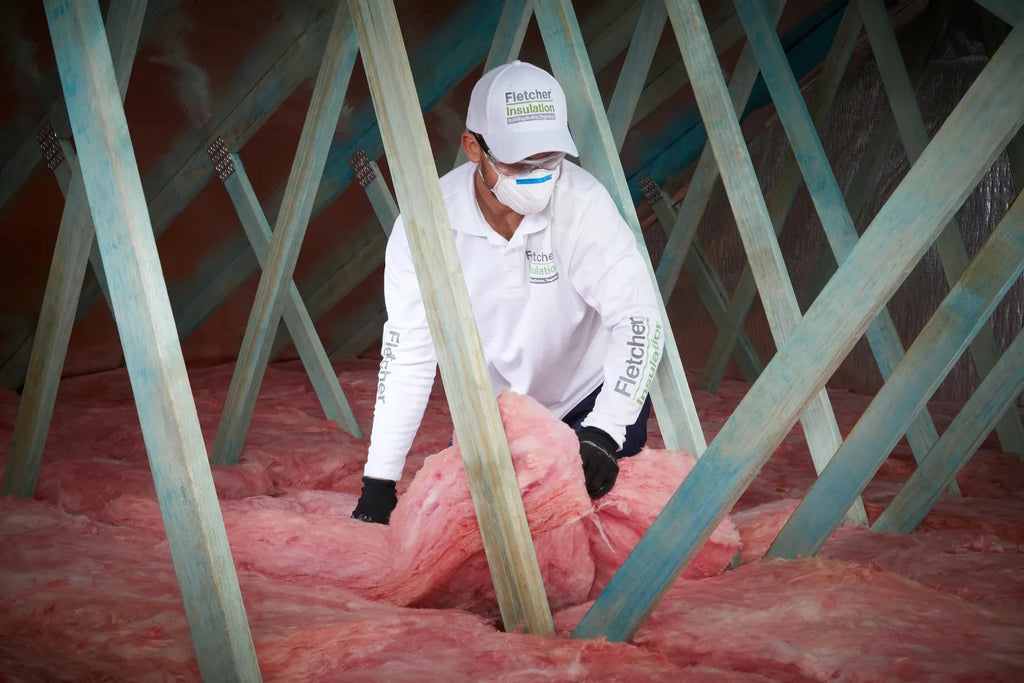

Cuts with a knife and friction fits between the joists. Let the batts recover to full loft, do not compress them, keep them dry, and keep the clearances downlights and flues require.
Full figures are in the table below.
Technical data
Fletcher technical data sheet (PDF)Sizes stocked
| Size (L x W x thickness) | Batts per pack | Pack size | Product code (old / new) |
|---|---|---|---|
| 1160 x 430 x 220 mm | 8 | 3.99 m² | 901504 / 4006041 |
| 1160 x 580 x 220 mm | 8 | 5.38 m² | 901505 / 4006042 |
Thermal
| Material R-value | R5.0 m²K/W |
|---|---|
| Nominal thickness | 220 mm |
| Maximum service temperature | 340 °C (ASTM C411/C447) |
Fire
| Combustibility | Non-combustible (AS/NZS 1530.1) |
|---|---|
| Ignitability index | 0 |
| Spread of flame index | 0 |
| Heat evolved index | 0 |
| Smoke developed index | 0 to 1 |
| Bushfire areas | BAL Low through to Flame Zone (AS 3959) |
Early fire hazard indices tested to AS/NZS 1530.3.
Material and handling
| Composition | FBS-1 bio-soluble glasswool |
|---|---|
| Moisture absorption | Under 0.2% by volume |
| Fungi resistance | Pass, no growth (ASTM C1338-14) |
| Ozone depleting substances | None used in manufacture |
| Recycled content | Australian made using up to 80% recycled content |
Compliance
| Thermal rating | Complies with AS/NZS 4859.1 |
|---|---|
| NCC 2022 | AS/NZS 4859.1 per Volume 1 J4D3(1) and ABCB Housing Provisions 3.12.2(1) |
| NCC 2022 non-combustibility | Non-combustible per AS/NZS 1530.1, meets clause C2D10(1) |
Compliance applies when the product is correctly specified and installed.
Fitting notes
Cuts with a knife and friction fits between joists, so it holds without fixings. Keep batts at full loft and let them recover before installing. Do not compress them into the space, because a squashed batt delivers less than its rated R-value. Keep the product dry at all times, before, during and after installation.
Figures are taken from the Fletcher Insulation technical data sheet for Pink Batts Ceiling, RTDS9 Revision 7, issued 17 February 2025. The full manufacturer document is linked above. Fletcher can change specifications without notice, so check the current sheet before specifying on a job.
Common questions
What sizes are stocked and how much does each one cover?
2 options are stocked, running from 1160 x 430 x 220 mm to 1160 x 580 x 220 mm. The table above lists each one with the coverage or quantity you get.
What thermal performance does it have?
Material R-value: R5.0 m²K/W. Maximum service temperature: 340 °C (ASTM C411/C447). Thermal rating: Complies with AS/NZS 4859.1.
How does it perform in a fire?
Combustibility: Non-combustible (AS/NZS 1530.1). Ignitability index: 0. Spread of flame index: 0. Heat evolved index: 0. Smoke developed index: 0 to 1. NCC 2022 non-combustibility: Non-combustible per AS/NZS 1530.1, meets clause C2D10(1).
Can it be used in a bushfire area?
Bushfire areas: BAL Low through to Flame Zone (AS 3959).
How does it handle moisture?
Moisture absorption: Under 0.2% by volume. Fungi resistance: Pass, no growth (ASTM C1338-14).
Does it meet Australian standards?
NCC 2022: AS/NZS 4859.1 per Volume 1 J4D3(1) and ABCB Housing Provisions 3.12.2(1).
What is it made of?
Composition: FBS-1 bio-soluble glasswool.
How is it installed?
Cuts with a knife and friction fits between joists, so it holds without fixings. Keep batts at full loft and let them recover before installing. Do not compress them into the space, because a squashed batt delivers less than its rated R-value. Keep the product dry at all times, before, during and after installation.
Cannot see your question? Ask our team and we will get you an answer.
Figures are taken from the Fletcher Insulation technical data sheet for Pink Batts Ceiling, RTDS9 Revision 7, issued 17 February 2025. The full manufacturer document is linked above. Fletcher can change specifications without notice, so check the current sheet before specifying on a job.
