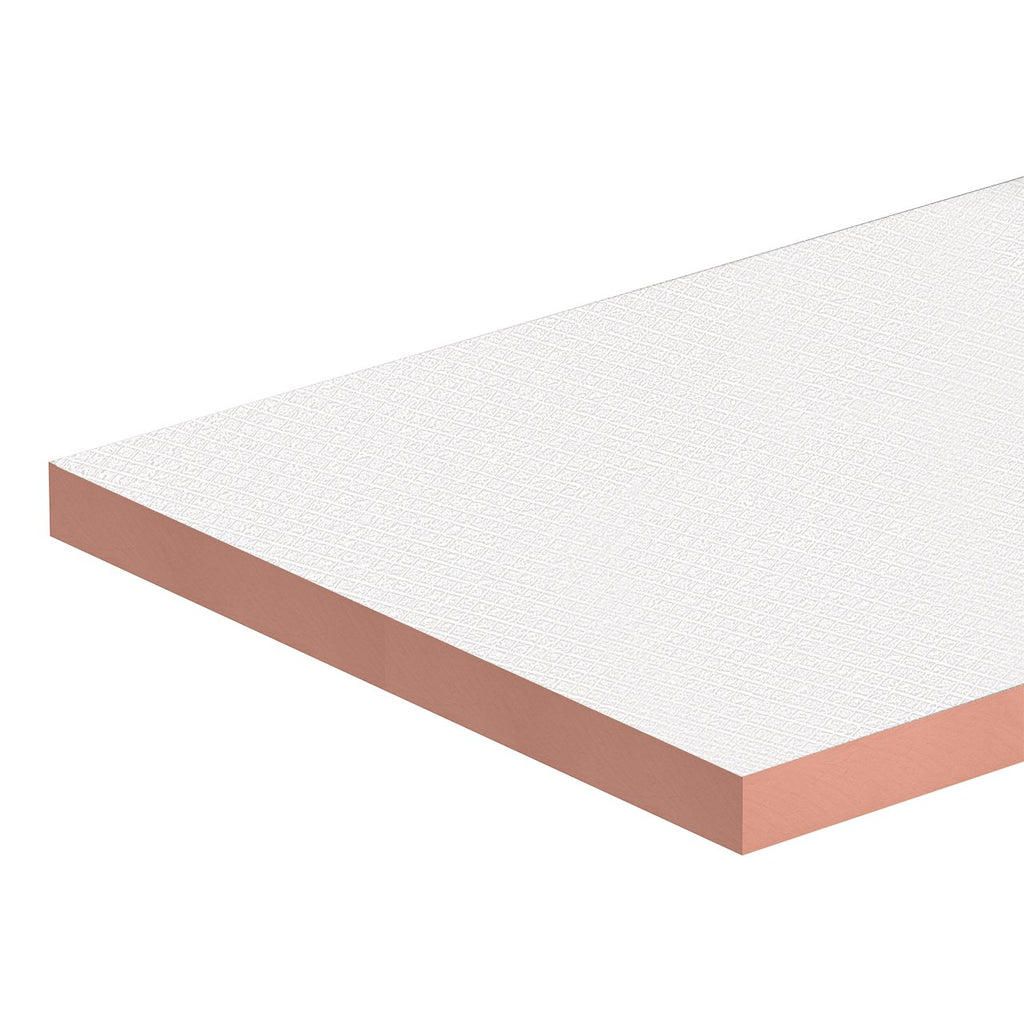

Kingspan Kooltherm K10 G2W White Soffit Board is the white-faced version of the K10 G2 phenolic soffit board, for concrete soffits and ceilings that stay exposed to view. It is CodeMark certified for NCC compliance.

White face, same core

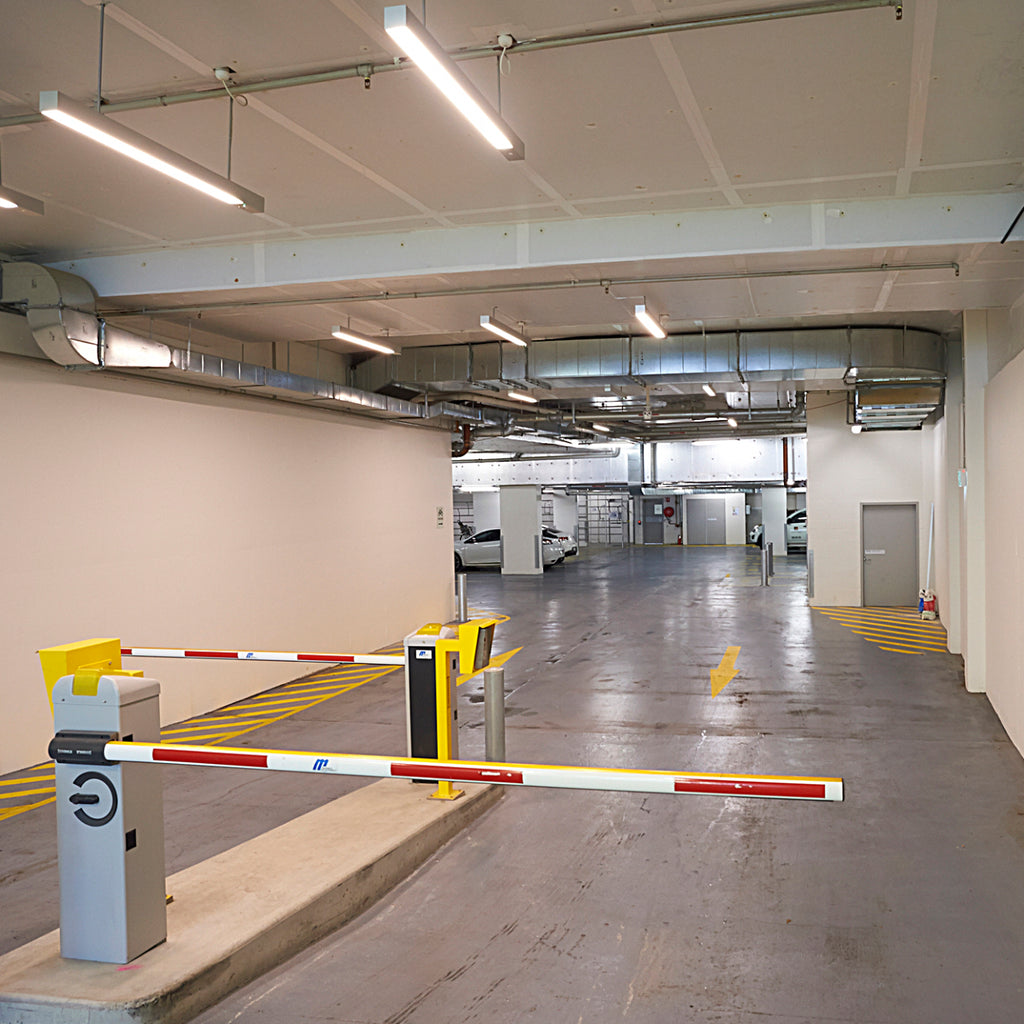

The phenolic core and the declared R-values are the same as K10 G2. The lower facing is white aluminium foil where K10 G2 has a highly reflective one. In a car park or any slab underside left in view, the board itself can be the finished surface. Under a concrete roof with no ceiling, Kingspan's total R-values for the white face are lower than for the reflective K10 G2.

Thickness and R-value

Thermal conductivity is 0.022 W/m·K at 45 mm and thicker. The range runs from 25 mm at R1.10 to 100 mm at R4.60, all in 2400 x 1200 mm boards.

Fire and certification

Fire classification is NCC Group 2, with a spread of flame index of 0 and smoke development of 3 or lower. FM 4880 approval covers 25 to 119 mm. The core is fibre-free, and the 10 year warranty is subject to the full Kooltherm terms.

Sold by the pack

Each thickness option is one full Kingspan pack: 12 boards (34.56 m²) at 25 mm, falling to 3 boards (8.64 m²) at 90 mm and 100 mm. Only 40 mm and 50 mm are stocked. The other eight thicknesses are made to order and take about 10 business days.

Thickness, R-value, pack and compliance figures are in the table below.

Technical data

Kingspan technical data sheet (PDF)

Kingspan Insulation · Rigid thermoset phenolic board with white facing · Exposed concrete soffit and ceiling application

Sizes stocked

Nominal thickness	Declared R-value at 23 °C	Board size	Boards per pack	m² per pack	Product code	Supply
25 mm	R1.10	2400 x 1200 mm	12	34.56 m²	100000044995	Made to order, about 10 business days
30 mm	R1.30	2400 x 1200 mm	10	28.80 m²	100000044696	Made to order, about 10 business days
40 mm	R1.75	2400 x 1200 mm	8	23.04 m²	100000043532	Stocked
45 mm	R2.05	2400 x 1200 mm	7	20.16 m²	100000048558	Made to order, about 10 business days
50 mm	R2.30	2400 x 1200 mm	6	17.28 m²	100000043533	Stocked
60 mm	R2.75	2400 x 1200 mm	5	14.40 m²	100000046794	Made to order, about 10 business days
70 mm	R3.20	2400 x 1200 mm	4	11.52 m²	100000060528	Made to order, about 10 business days
80 mm	R3.65	2400 x 1200 mm	4	11.52 m²	100000043534	Made to order, about 10 business days
90 mm	R4.10	2400 x 1200 mm	3	8.64 m²	100000086050	Made to order, about 10 business days
100 mm	R4.60	2400 x 1200 mm	3	8.64 m²	100000049479	Made to order, about 10 business days

Thermal

Thermal conductivity, 45 mm and thicker	0.022 W/m·K at 23 °C
Thermal conductivity, 25 to 44 mm	0.023 W/m·K at 23 °C
Test standard	AS/NZS 4859.1:2018 and ASTM C518-2017

Declared R-values match the standard K10 G2, but under a concrete roof with no ceiling the white face gives lower total R-values than K10 G2's reflective foil.

Fire

NCC group number	Group 2 (AS 5637.1:2015 and AS ISO 9705)
Spread of flame index	0
Smoke development	3 or lower
SMOGRA-RC	100 m²/s² x 1000 or lower
FM Approval	FM 4880, UBC 26-3 Class 1, for thicknesses 25 to 119 mm

Early fire hazard properties are tested to AS 1530.3, and the FM approval covers ceiling and soffit installation only, with non-combustible walls.

Physical

Compressive stress	On average over 100 kPa at 10% compression (AS 2498.3)
Water vapour transmission	Over 35 MN·s/g (ASTM E96 Part B)
Core	Fibre-free rigid thermoset closed cell phenolic
Upper facing	Tissue based
Lower facing	White aluminium foil, bonded during manufacture

Compliance and warranty

Certification	CodeMark certified for NCC compliance
Thermal rating	Declared to AS/NZS 4859.1:2018
Warranty	10 years, residential and commercial, subject to the full Kooltherm warranty terms
Management systems	ISO 9001, ISO 14001, ISO 45001 and ISO 50001 certified manufacture

Fitting notes

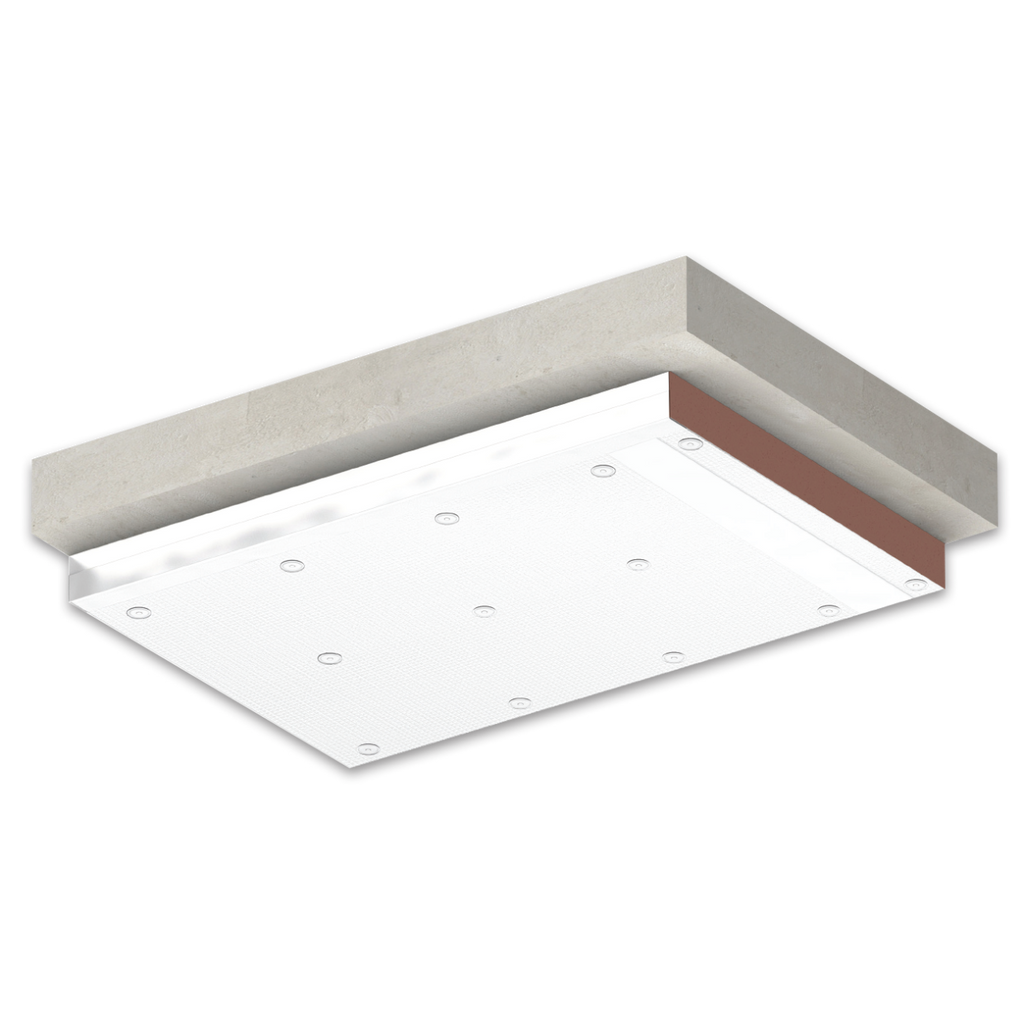

Fix each 2400 x 1200 mm board straight to the concrete soffit with at least 11 insulation fasteners that have a head diameter of 35 mm or more, which works out at 3.81 fixings per m². Kingspan's pattern puts four fasteners along each long edge, 50 to 150 mm in from the edge, and three along the middle. Fewer fixings would not be FM approved. Joints can be staggered or squared, and are taped with 96 mm wide white Kingspan Insulation Tape on a facing wiped clean of dust and oil. Where wind pressure can reach the soffit, check the need for extra fixings against the Australian wind load standards. Fit the board tight to fire collars but leave the collar face uncovered so the collar can activate. Cover exposed board edges with white tape lapped at least 48 mm onto the face, or a metal C-section. Boards that have got wet should not be used. Install to AS 3999:2015 and AS 3000:2018, and keep the foil facing clear of un-insulated cables and fittings.

Figures are taken from the Kingspan data sheet for Kooltherm K10 G2W White Soffit Board, KIAU0032 Issue 13, February 2024. Boards per pack, product codes and supply times are from Kingspan's Kooltherm product list. The manufacturer document is linked above. Kingspan can change specifications without notice, so check the current sheet before specifying on a job.

Common questions

Can I buy a single board?

No. Kooltherm boards are sold in Kingspan's full packs, and each thickness option is one pack of 2400 x 1200 mm boards. A pack runs from 12 boards (34.56 m²) at 25 mm down to 3 boards (8.64 m²) at 90 mm and 100 mm.

Which thicknesses are in stock?

40 mm and 50 mm are stocked. The other eight thicknesses (25, 30, 45, 60, 70, 80, 90 and 100 mm) are made to order by Kingspan and take about 10 business days.

What R-value does the finished soffit get?

Kingspan's totals assume 150 mm of concrete. Under a concrete roof with no ceiling, 50 mm gives RT2.5 heat flow in and RT2.6 out, and 90 mm gives RT4.3 and RT4.4. Under an unenclosed sub-floor the figures are RT2.4 and RT2.6 at 50 mm, and RT4.2 and RT4.5 at 90 mm.

Can the board be left exposed as the finished ceiling?

Yes, that is what the white aluminium foil facing is for. It is a Group 2 material under the NCC, but CodeMark CM20201 excludes public corridors of Class 3 and 9a buildings for the aged, people with disability, children and healthcare, and Class 9b and 9c public corridors, unless the building is sprinkler protected. It is also excluded from fire-isolated exits and fire control rooms.

How many fixings does each board need?

At least 11 insulation fasteners per 2400 x 1200 mm board, each with a head of 35 mm diameter or more, which is 3.81 fixings per m². Kingspan say fewer fixings would not be FM approved. Where wind pressure can reach the soffit, check whether extra fixings are needed.

How are the joints, edges and fire collars finished?

Tape the joints with 96 mm wide white Kingspan Insulation Tape. Exposed edges take the same white tape lapped at least 48 mm onto the face, or a metal C-section. Fit the board tight around fire collars but never cover the collar face, which has to stay exposed for the collar to activate.

Is it the same board as K10 G2?

Same fibre-free phenolic core, same 2400 x 1200 mm board and the same declared R-values, from R1.10 at 25 mm to R4.60 at 100 mm. The lower facing is what changes: highly reflective aluminium foil on K10 G2, white aluminium foil on K10 G2W. Under a concrete roof with no ceiling the reflective K10 G2 reaches higher total R-values, while Kingspan's totals under an unenclosed sub-floor are the same for both.

Cannot see your question? Ask our team and we will get you an answer.

Answers use the Kingspan data sheet for Kooltherm K10 G2W White Soffit Board (KIAU0032 Issue 13, February 2024), the Kooltherm K10 G2 data sheet (KIAU0030 Issue 13, February 2024) for the comparison, CodeMark certificate CM20201 and Kingspan's pack quantities for each thickness.
